Color: clear

Thickness:

Standard: 1.8 mm, 2.0 mm, 3 mm, 4 mm, 5 mm, 5.5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Special: 2.1 mm, 2.3 mm, 2.5 mm, 2.6 mm, 2.7 mm, 2.8 mm, 2.8 mm, 3.5 mm, 4.5 mm
Ultra-thin: 0.8 mm, 1.0 mm, 1.1 mm, 1.3 mm, 1.5 mm, 1.6 mm ,1.7 mm
Ultra-thick: 15 mm, 19 mm, 22 mm, 25 mm

Size:

1220*914 mm, 1830*1220 mm, 2134*1524 mm, 2134*165 0mm, 2140*1830 mm, 2200*1600 mm, 2200*1650 mm, 2250*1650 mm, 2440*1830 mm, 3300*2140 mm, 3300*2250 mm, 3300*2440 mm, 3660*2140 mm, 3660*2250 mm, 3660*2440 mm, and etc.
Any other huge size can be produced as required up to the size of 4880*11000 mm.

Standard: GB11614-2009 (China) and EN572 (EU)

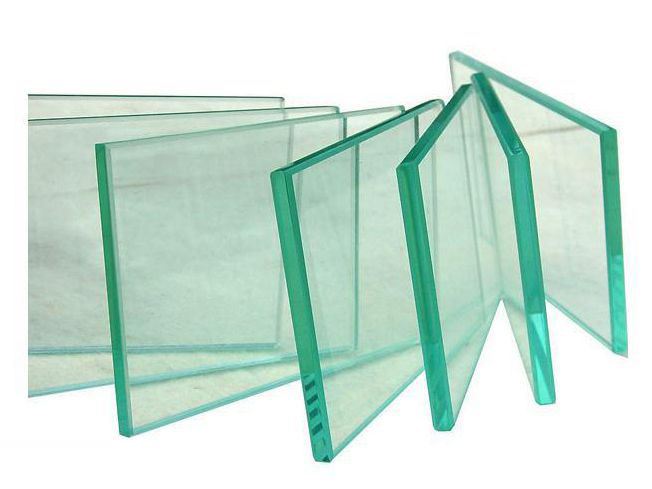

Clear float glass is made by pouring the molten glass made by a specific proportion of quartz, soda ash and dolomite from a furnace into a chamber that contains a bed of molten tin. The combination of gravity and surface tension makes the smooth surface of the glass. Then by the roller table, the glass is moved to the annealing lehr, where it is cooled down and cut into clear glass sheets, featured with smooth, parallel surfaces and extremely low optical distortion.

Advantages of Float Process

Suitable for efficient manufacturing of high-quality flat glass with uniform thickness, smooth surfaces, free from any ripple marks or irregularities.
Low energy consumption on the production line with high product yield. The fully mechanized and automated production line ensures high efficiency.
Continuous production for several years, resulting in stable supply of high-quality clear float glass.
Providing environment for production of new varieties such as electric float reflective glass and spray-coated glass during annealing.

Did you know that the float glass process, which is now one of the main methods used worldwide for producing flat glass, was first developed by the British company Pilkington in 1952? Since then, other glass manufacturers followed suit and began developing their own versions, which ultimately led to the three main float glass processes used today: the Pilkington Process in the UK, the Pittsburgh Process in the US, and the Chinese Float Process.

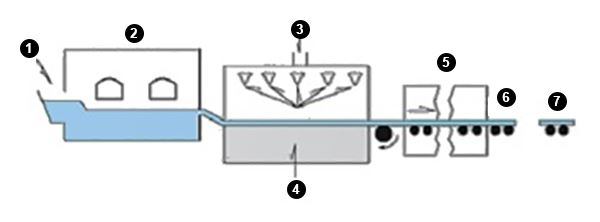

1. Raw Material
2. Furnace
3. Protective Gas for Tin Bath
4. Molten Tin
5. Lehr
6. Cutting
7. Final Product

Advantages

Smooth and flat surface with good transparency
Excellent optical properties
Flexible size specifications that reduce cutting loss

Resistant to acid, alkali, and corrosion
Suitable as a substrate for various glass processes

Optical Parameters

Thickness (mm)	Ultraviolet	Visible Light			Solar			U-Value (W/m²K)		SC
		Transmittance	Reflectance		Direct	Reflectance	Absorption	Summer	Winter
		Transmittance	1	2	Direct	Reflectance	Absorption	Summer	Winter
2.1	0.7790	0.9064	0.0740	0.0745	0.8749	0.0700	0.0552	5.3585	5.9455	1.0245
2.3	0.7776	0.9062	0.0738	0.0743	0.8740	0.0699	0.0565	5.3525	5.9385	1.0235
2.5	0.7760	0.9059	0.0735	0.0739	0.8732	0.0695	0.0576	5.3465	5.9315	1.0225
3.0	0.7729	0.9052	0.0725	0.0730	0.8715	0.0689	0.0606	5.3355	5.9175	1.0215
4.0	0.7340	0.9018	0.0748	0.0751	0.8530	0.0695	0.0775	5.3055	5.8820	1.0075
5.0	0.7010	0.8980	0.0740	0.0745	0.8375	0.0645	1.0212	5.2740	5.8465	0.9975
6.0	0.6790	0.8935	0.0735	0.0738	0.8245	0.0665	1.0075	5.2475	5.8140	0.9865
8.0	0.6259	0.5560	0.0685	0.0745	0.7920	0.0610	0.9966	5.1885	5.7445	0.9615
12.0	0.5758	0.8729	0.0650	0.0690	0.7435	0.0560	0.9856	5.0745	5.6105	0.9255
15.0	0.5410	0.8630	0.0760	0.0772	0.7085	0.0625	0.2295	4.9970	5.5195	0.8965

Measured according to ISO9050:2003

Applications of Clear Float Glass

Our clear float glass is a high-quality and versatile material that is widely used for various interior and exterior decorations of houses and buildings. It is also utilized in the production of glass furniture, household appliances, automotive glass, and other processed products. Its wider application in mirrors and optical instruments have added great color to people’s lives.
